Description

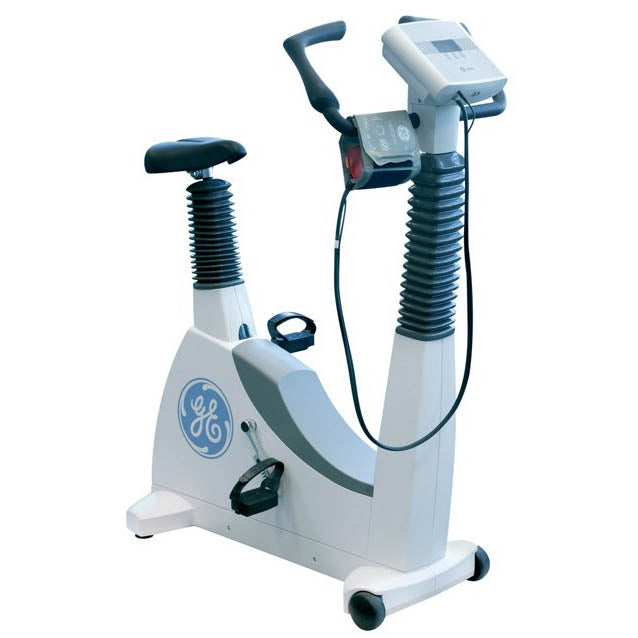

pedale ergometer GE eBike Basic ErgometerThe GE eBike Basic Ergometer (#2017911 500 270069) includes PC Control Panel and eBike Basic. It is a rounds per minute independent bicycle ergometer for load ranges between 6 and 999 watts. Warranty: 1 Year. The GE eBike Basic Ergometer delivers steady and comfortable patient positioning for stress echo procedures. The robust mechanical construction ensures reliable function even when in constant use. The ergonomic design offers a seating position
The GE eBike Basic Ergometer (#2017911-500-270069) includes PC Control Panel and eBike Basic. It is a rounds per minute independent bicycle ergometer for load ranges between 6 and 999 watts.
Warranty: 1 Year.
The GE eBike Basic Ergometer delivers steady and comfortable patient positioning for stress-echo procedures. The robust mechanical construction ensures reliable function even when in constant use. The ergonomic design offers a seating position that is optimal for almost all body sizes, and allows for easy mounting and dismounting, even for those with restricted movement.
Features
GE eBike Basic Ergometer Features
- Revolutions per minute-independent load.
- Load accuracy according to DIN VDE 0750-0238.
- Continuously variable seat height adjustment.
- Handlebar adjustment.
- Digital and analog interfaces to GE Healthcare stress-testing systems.
- PC Control Panel:
- For control via ECG writer and PC-ECG.
- Fully programmable stress-testing programs.
- Display of key values on screen.
Specifications
GE eBike Basic Ergometer Specifications
- Brake System: Computer-controlled eddy current brake with torque measurement.
- Load: 6 - 999 watts, speed (RPM)-independent.
- Accuracy: Complies with DIN VDE 0750-0238.
- RPM Range: 30 - 130 RPM.
- Patient Height Range: 47" - 83" (120 cm - 210 cm).
- Minimum Pediatric Height (optional): 43" (110 cm).
- Patient Weight: 352 lb (160 kg) max.
- Display: LCD 3 x 1 (68 x 34 mm).
- Patient Display: RPM (LED).
- Keyboard: Touch-panel keyboard.
- Handlebars Adjustment: Tilt through 360 degree rigid steering column.
-
Ergometry Programs:
- Fully Programmable: 10 user-configurable protocols.
- Set Graduated Programs (WHO, Hollman, etc.): 5.
- Manual Load Setting: Standard.
- Dimensions: Width: 460 mm, handlebar approx. 575 mm. Length: 900 mm. Height: 900 mm min., 1350 mm max.
- Weight: ~61 kg.
- Power Supply: 100 to 240 V, 50 to 60 Hz.
- Power Consumption: 60 VA max.
